Dryer Booster Fan Installation in Carlsbad, CA

Why Carlsbad dryer runs need a booster fan

The cause is duct length, not a weak dryer. Two-story tracts built in the 1990s and 2000s put laundry upstairs. The duct climbs through a chase to a roof jack. Those runs hit 20-35 ft with multiple elbows. Every elbow counts as added equivalent length. Manufacturers rate the blower for a fixed total. Past that number, lint settles instead of exiting. Converted garage laundries do the same thing horizontally, snaking along the ceiling to a far wall.

A fan is the wrong answer for some of these. Check the easy stuff first. Kinked foil transition behind a pedestal pair. A pest screen on the vent cover, which is never code-compliant. A salt-corroded exterior flap near the beach that no longer swings open. Bird or wasp nests in the hood, common in spring. A duct sagging in an attic joist bay, pooling lint at the low spot. Boosting air through any of those just hides the fault.

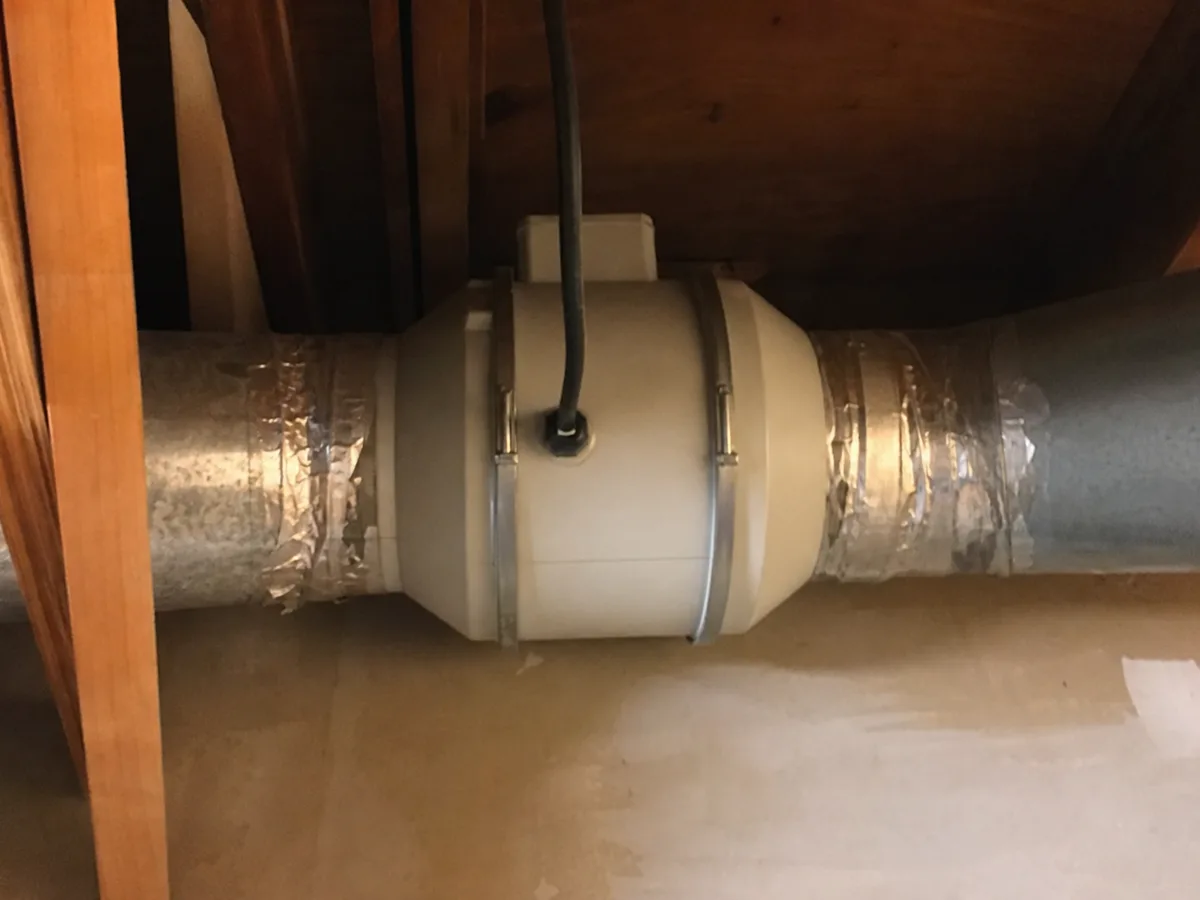

Installed right, the fan sits well downstream of the dryer, in rigid metal duct, with no screws penetrating the interior. It needs power at the fan location. Activation is either a duct pressure switch or a current sensor on the dryer circuit.

The impeller collects lint, so we place it where a person can reach it later. Shortening the run or moving to a sidewall termination, where the framing allows, beats adding a motor.
